In domo / Productio / JDB solidum-lubricating afferentem / Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing
Lupum Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing

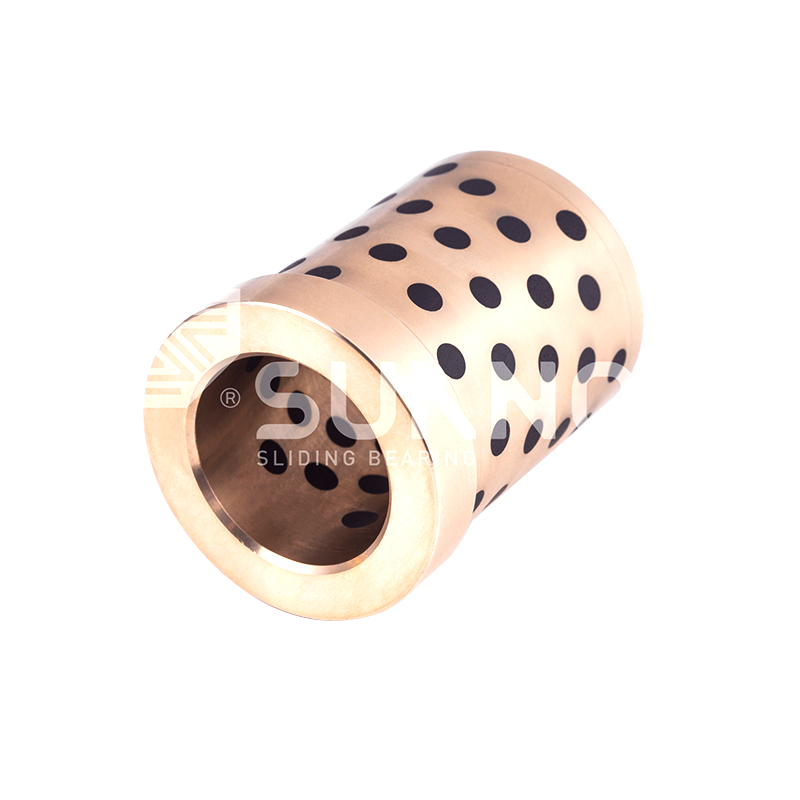

Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing
  • Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing
  • Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing
  • Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing

Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing

Product Description:

Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing altus-perficiendi sustentationem-free afferentem bushing. Aes quale factum est, est durabile et corrosio repugnans. Unicum consilium auto-lubricationis addito lubricante oleum non requirit, efficaciter reducendo sumptuum sustentationem et pollutionem environmental. LABIUM compages facile est inaugurare et figere, firmam ac certam operationem praestans. Apta est variis instrumentis industrialibus, ut transmissio mechanica, automatio instrumenti, etc., et potest signanter minuere frictioni coefficientis..

Contact Us
Antecedens：Sustentationem gratis Collarem aes Din9834 Oilless Guide Bushing supportantes
Proximum：Flanged Graphite inplenda Bronze Bushing, sui Lubricating Oilless Aerea Sleeve Ferens GB71 NAAMS

Product Description

Latin No. d L t D tolerantia D 1 d H7
e7* k6
JOST-9x12 9 12 3 14 -0.032
-0.050 		0.012
0.001 		16 9 0.015
0
JOST-9x17 17
JOST-9x22 22
JOST-9x27 27
10
JOST-9x36 36
JOST-10x12 10 12
JOST-10x17 17
JOST-10x22 22
JOST-10x27 27
JOST-10x36 36
JOST-12x17 12 17 6 18 23 12 0.018
0
JOST-12x22 22
JOST-12x27 27
JOST-12x36 36
JOST-14x17 14 17 20 -0.040
-0.061 		0.015
0.002 		25 14
JOST-14x22 22
JOST-14x27 27
JOST-14x36 36
JOST-14x46 46
JOST-14x56 56
JOST-17x17 17 17 25
JOST-17x22 22
JOST-17x27 27
JOST-17x36 36
JOST-17x46 46
JOST-17x56 56
JOST-16x17 16 17 6 22 -0.040
-0.061 		0.015
0.002 		27 16 0.018
0
JOST-16x22 22
JOST-16x27 27
JOST-16x36 36
JOST-16x46 46
JOST-16x56 56
JOST-18x17 18 17 26 31 18
JOST-18x22 22
JOST-18x27 27
JOST-18x36 36
JOST-18x46 46
JOST-18x56 56
JOST-18x66 66
JOST-20x17 20 17 20 0.021
0
JOST-20x22 22
JOST-20x27 27
JOST-20x36 36
JOST-20x46 46
JOST-20x56 56
JOST-20x66 66
JOST-22x22 22 22 6 30 -0.040
-0.061 		0.015
0.002 		35 22 0.021
0
JOST-22x27 27
JOST-22x36 36
JOST-22x46 46
JOST-22x56 56
JOST-22x66 66
JOST-22x76 76
JOST-22x86 86
JOST-24x17 24 17 24
JOST-24x22 22
JOST-24x27 27
JOST-24x36 36
JOST-24x46 46
JOST-24x56 56
JOST-24x66 66
JOST-24x76 76
JOST-24x86 86
JOST-30x27 30 27 42 -0.050
-0.072 		0.018
0.002 		47 30
JOST-30x36 36
JOST-30x46 46
JOST-30x56 56
JOST-30x66 66
JOST-30x76 76
JOST-30x86 86
JOST-30x96 96
JOST-30x116 116
JOST-32x27 32 27 32 0.025
0
JOST-32x36 36
JOST-32x46 46
JOST-32x56 56
JOST-32x66 66
JOST-32x76 76
JOST-32x96 96
JOST-40x56 40 56 10 54 -0.060
-0.090 		0.021
0.002 		60 40 0.025
0
JOST-40x66 66
JOST-40x76 76
JOST-40x86 86
JOST-40x96 96
JOST-40x116 116
JOST-40x136 136
JOST-40x156 156
JOST-42x56 42 56 42
JOST-42x66 66
JOST-42x76 76
JOST-42x86 86
JOST-42x96 96
JOST-42x116 16
JOST-42x136 136
JOST-42x156 156
JOST-50x76 50 76 66 72 50
JOST-50x86 86
JOST-50x96 96
JOST-50x116 16
JOST-50x136 136
JOST-50x156 156
JOST-50x196 196
JOST-60x96 60 96 20 80 86 0.030
0
JOST-60x116 16
JOST-60x136 36
JOST-60x156 156
JOST-60x196 196

Product Introduction

JOST Series

Circum sui lubrica JOST Oilless aes flanged Guide Ferens Bushing

LABIUM rotundum cum 360-gradu graphitico configurationis lubricationis ad applicationes ad directionem rotariam postulans retentione et sustentatione axiali liberae operationis.
Circum Flange Self-Lucbricating aes Substrate 260°C Max
1.6 Ratio OD Flange
0.08 Frictio Coefficientis
200 N/mm² Static
◉ Concentrica Graphite Pattern Inserit annulis concentricis digestis in faciem ducatus tam boream quam LABIUM. Lubricationem uniformem praebet ad quamlibet positionem gyrationis.
⟳ 360-Degree Flange LABIUM continuum circularis cum uniformi crassitudine. Nulla intentio requiritur per institutionem. Consonans superficies clamping.
↕ Axial Load Capable LABIUM facies sustinet onera trusa usque ad 40 N/mm². Graphite insertat lubricationem lubricationis pro contactu axiali insertam.
⚙ Gyratorius Motus Optimized Specialiter designatae sunt tabulae gyratorii indices, turntablei, et actuatorum applicationum ubi variatur positio LABIUM.

Material & euismod Specifications

Basis Alloy CuSn7Zn4Pb7 Princeps robur aeris
duritia 140-190 HB Brinell scale
distrahentes Fortitudo 480 N/mm² Minimum
Prolongatio 18% Minimum
Ducatus Gradus EG-98 Graphite princeps munditiae
Ducatus Coverage 22% Bore / 16% Flange Superficies
Scelerisque Conductivity 50 W/m·K Ad 20°C
Expansion coefficiens 19 x 10⁻⁶ /K 20-260°C

Circum Flanged Bushing Dimensiones

Standard series metrica cum LABIUM rotundum profile
ID mm OD mm Flange OD longitudo L Flange T Pondus
8 14 22 10, 15, 20 2.5 8g
10 16 26 12, 16, 20, 25; 2.5 14g
12 20 32 15, 20, 25, 30; 3.0 22g
15 24 38 20, 25, 30, 40; 3.0 35g
18 28 44 25, 30, 40, 50; 3.5 52g
20 32 50 30, 40, 50, 60; 3.5 68g
25 38 60 40, 50, 60, 80 . 4.0 110g
30 45 70 50, 60, 80, 100 4.5 170g
40 58 90 60, 80, 100, 120 5.0 320g
50 70 110 80, 100, 120, 150 . 5.5 520g
Morbi posuere diam ac ultrices vestibulum. Longitudines non vexillum usque ad 200mm confici possunt.

Gyratorius Application instruere

Gyratorius Indexing Tabularum Subtilitas tabularum positionum lenis motus gyratorii requirens cum retentione axiali.
Turntable Bearings Grave officium turntables pro contione et instrumento probato.
Gyratorius Actuators Pneumaticum et hydraulicum actuator gyratorium undiqua puncta.
Packaging Turrets Gyrarii signandi et implendi turriculam gestus ductor.
Gyratorius Die Cutting Gyrarii moriuntur incisione et instrumento caelati duces.
Positioning Tempus Gyratorius positus gradus inspectionis et processus.

Technical Inquisitiones

Flange faciem graphite coverage Facies Linga continet 8 ad 14 graphite insertas in rotundum exemplar dispositas. Coverage circa 16% superficiei superficiei LABIUM.
tolerantiae OD Flange Latin LABIUM OD tolerantia est ISO h11. Ad applicationes quaerunt propius idoneos, h9 tolerantia in petitione praesto sunt.
LABIUM potest adhiberi ad signationem No. Facies LABIUM ut signantes superficiem non designatur. Locus axialis et strictus suffulsus solum subsidium praebet.
Maxime gyrationis celeritas Maxima celeritas continua 0.5 m/s celeritas superficiei est. Superioribus velocitatibus, consule PV rating et refrigerationem requisita.
Flange Type Per continuum
Standard ISO 3547-2
Graphite Insert comitis Bore: 6-12 / Flange: 8-14
Max Axial Lond 40 N/mm²
